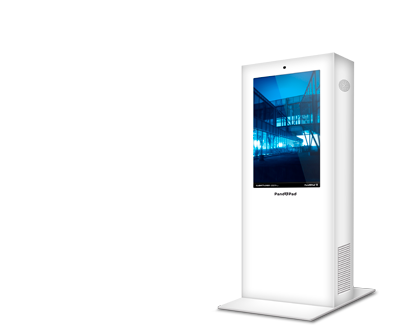

PandoPad®
TOTEM
42

  • Elegant and robust self-standing cabinet
  • Outdoor
  • White colour
  • Clean and modern design
  • Interactive or non-interactive installation
  • Portrait or landscape orientation




Color options

First View

  • 47" touch screen
  • self-standing unit
  • optional embedded CPU

Screen

Portrait orientation
  • diagonal size: 47" (119cm)
  • display frame: 62 x 107 cm
  • resolution: 1080 x 1920
  • 16.6 million colours
Landscape orientation
  • diagonal size: 47" (119cm)
  • display frame: 107 x 62 cm
  • resolution: 1920 x 1080
  • 16.6 million colours


Touch

  • Touch sensitive screen
  • "Smart Touch" technology provides precision and smooth user interface through natural actions

CPU

  • Intel processor for smooth and optimal performance
  • Microsoft Windows® operating system
  • uninterruptible power supply
  • wireless network connection


Details

  • natural ventilation (noiseless)
  • service port for easy access

Schematic Diagram and Dimensions

  • width:  82cm
  • depth: 20-30cm
  • height: 200cm


Design

Modern cabinet, attractive design, suited for indoor installations. Made of cold pressed steel coated in white or black plastic or in plastic with an inside iron display frame. Customer can specify other colours for plastic coating, or standard or metallic paint, or gold or silver imitation coating, or have it completely covered by a plastic foil. Spacious design provides for a simple fitout of all hardware components.

Maintenance

Easy to access and secure service port. The port is divided in two parts – quick access (for service) and full access for replacement/fitout of hardware components. All wiring and connections are inside the cabinet and are protected from unwanted access by a lock. Service and installation ports are located at the back of the cabinet, hidden from user’s view.

Ergonomics

When designing the cabinet a special attention was given to provide access to all kinds of users.
