PandoPad®
WALL
42

  • Wall mounted housing
  • Indoor
  • Choice of colours
  • Curved edge design. Modern look
  • Interactive or non-interactive installation
  • Portrait or landscape orientation

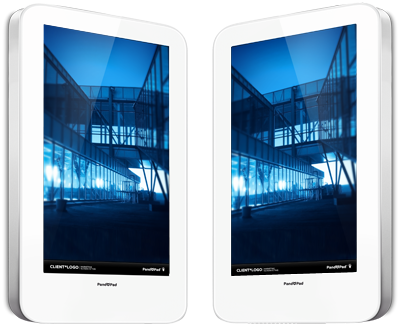

WHITE

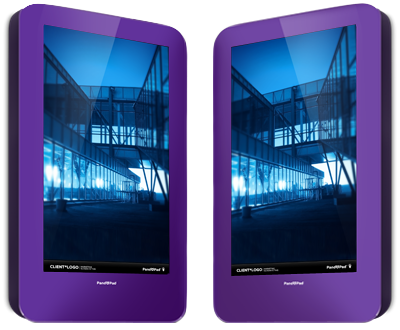

COLOR

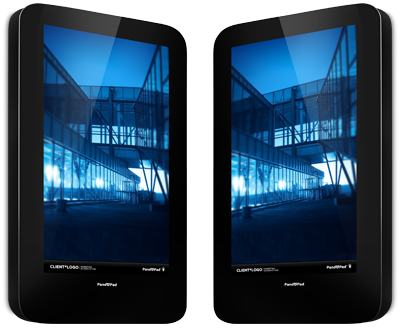

BLACK
Color options

First View

  • 42" high resolution screen
  • wall mounted unit
  • integrated PC

Screen

Portrait orientation
  • diagonal size: 42" (106cm)
  • display frame: 52 x 93 cm
  • resolution: 1080 x 1920
  • 16.6 million colours
Landscape orientation
  • diagonal size: 42" (106cm)
  • display frame: 93 x 52 cm
  • resolution: 1920 x 1080
  • 16.6 million colours




Details

  • natural ventilation (noiseless)
  • service port for easy access
  • adjustable wall gap for easier wiring
  • adjustable display frame to accommodate screens of different thickness
  • width:  72cm
  • depth: 15cm
  • height: 129cm
  • weight (approx.): 25kg

Design

Suited for indoor wall mounted installations.Made of cold pressed steel and glass, coated  in white or black plastic. Customer can specify other colours for plastic coating, or standard or metallic paint, or gold or silver imitation coating, or have it completely covered by a plastic foil.

Maintenance

Secure (locked) service port for access to mounting screws and switches/wiring. All wiring and connections are inside the cabinet and cannot be physically accessed without the key. Service port is located at the top of the display frame, hidden from user’s view.
